amchart 한국지도(독도포함)

참고사이트 : https://www.amcharts.com/demos/map-image-drill-down/

Map Image Drill-Down - amCharts

https://s3-us-west-2.amazonaws.com/s.cdpn.io/t-160/TargetStores.json
안에 내용은 필요에 따라 수정한 후 별도 파일로 사용해야 함.

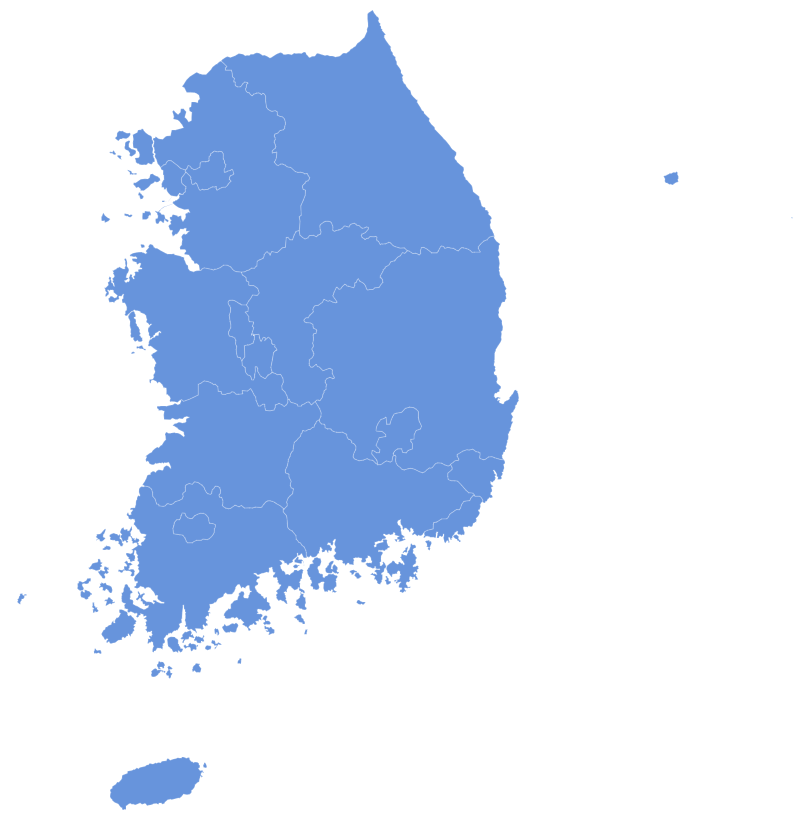

독도는 작아서 잘 안보이긴 함...(자세히 울릉도 아래쪽으로 작은..점이...)

southKoreaLow.js

0.11MB



<div style="display:flex; justify-content: center; align-items: center; width:100%; height:100%;">
    <div id="chartdiv" style="width:100%; height:800px;"></div>
</div>

<script src="https://cdn.amcharts.com/lib/5/index.js"></script>
<script src="https://cdn.amcharts.com/lib/5/map.js"></script>
<!-- <script src="https://cdn.amcharts.com/lib/5/geodata/usaLow.js"></script> -->
<script src="/plugins/map/southKoreaLow.js"></script>
<script src="https://cdn.amcharts.com/lib/5/themes/Animated.js"></script>
<script type="text/javascript">
/**
 * ---------------------------------------
 * This demo was created using amCharts 5.
 *
 * For more information visit:
 * https://www.amcharts.com/
 *
 * Documentation is available at:
 * https://www.amcharts.com/docs/v5/
 * ---------------------------------------
 */

// =================================
// Create map chart
// =================================

// Create root and chart
var root = am5.Root.new("chartdiv");

// Set themes
root.setThemes([
  am5themes_Animated.new(root)
]);

var chart = root.container.children.push(
  am5map.MapChart.new(root, {
    panX: "rotateX",
    // projection: am5map.geoAlbersUsa()
  })
);

// Create polygon series
var polygonSeries = chart.series.push(
  am5map.MapPolygonSeries.new(root, {
    geoJSON: am5geodata_southKoreaLow
  })
);

polygonSeries.mapPolygons.template.setAll({
  tooltipText: "{name}"
});

polygonSeries.mapPolygons.template.states.create("hover", {
  fill: am5.color(0x297373)
});

var zoomOut = root.tooltipContainer.children.push(am5.Button.new(root, {
  x: am5.p100,
  y: 0,
  centerX: am5.p100,
  centerY: 0,
  paddingTop: 18,
  paddingBottom: 18,
  paddingLeft: 12,
  paddingRight: 12,
  dx: -20,
  dy: 20,
  themeTags: ["zoom"],
  icon: am5.Graphics.new(root, {
    themeTags: ["button", "icon"],
    strokeOpacity: 0.7,
    draw: function(display) {
      display.moveTo(0, 0);
      display.lineTo(12, 0);
    }
  })
}));

zoomOut.get("background").setAll({
  cornerRadiusBL: 40,
  cornerRadiusBR: 40,
  cornerRadiusTL: 40,
  cornerRadiusTR: 40
});
zoomOut.events.on("click", function() {
  if (currentSeries) {
    currentSeries.hide();
  }
  chart.goHome();
  zoomOut.hide();
  currentSeries = regionalSeries.US.series;
  currentSeries.show();
});
zoomOut.hide();


// =================================
// Set up point series
// =================================

// Load store data
am5.net.load("https://s3-us-west-2.amazonaws.com/s.cdpn.io/t-160/TargetStores.json").then(function(result) {
  var stores = am5.JSONParser.parse(result.response);
  setupStores(stores);
});

var regionalSeries = {};
var currentSeries;

// Parses data and creats map point series for domestic and state-level
function setupStores(data) {
  console.log(data);

  // Init country-level series
  regionalSeries.US = {
    markerData: [],
    series: createSeries("stores")
  };

  // Set current series
  currentSeries = regionalSeries.US.series;

  // Process data
  am5.array.each(data.query_results, function(store) {

    // Get store data
    var store = {
      state: store.MAIL_ST_PROV_C,
      long: am5.type.toNumber(store.LNGTD_I),
      lat: am5.type.toNumber(store.LATTD_I),
      location: store.co_loc_n,
      city: store.mail_city_n,
      count: am5.type.toNumber(store.count)
    };

    // Process state-level data
    if (regionalSeries[store.state] == undefined) {
      var statePolygon = getPolygon("US-" + store.state);
      if (statePolygon) {

        var centroid = statePolygon.visualCentroid();

        // Add state data
        regionalSeries[store.state] = {
          target: store.state,
          type: "state",
          name: statePolygon.dataItem.dataContext.name,
          count: store.count,
          stores: 1,
          state: store.state,
          markerData: [],
          geometry: {
            type: "Point",
            coordinates: [centroid.longitude, centroid.latitude]
          }
        };
        regionalSeries.US.markerData.push(regionalSeries[store.state]);

      }
      else {
        // State not found
        return;
      }
    }
    else {
      regionalSeries[store.state].stores++;
      regionalSeries[store.state].count += store.count;
    }

    // Process city-level data
    if (regionalSeries[store.city] == undefined) {
      regionalSeries[store.city] = {
        target: store.city,
        type: "city",
        name: store.city,
        count: store.count,
        stores: 1,
        state: store.state,
        markerData: [],
        geometry: {
          type: "Point",
          coordinates: [store.long, store.lat]
        }
      };
      regionalSeries[store.state].markerData.push(regionalSeries[store.city]);
    }
    else {
      regionalSeries[store.city].stores++;
      regionalSeries[store.city].count += store.count;
    }

    // Process individual store
    regionalSeries[store.city].markerData.push({
      name: store.location,
      count: store.count,
      stores: 1,
      state: store.state,
      geometry: {
        type: "Point",
        coordinates: [store.long, store.lat]
      }
    });

  });
  console.log(regionalSeries.US.markerData)
  regionalSeries.US.series.data.setAll(regionalSeries.US.markerData);
}

// Finds polygon in series by its id
function getPolygon(id) {
  var found;
  polygonSeries.mapPolygons.each(function(polygon) {
    if (polygon.dataItem.get("id") == id) {
      found = polygon;
    }
  })
  return found;
}

// Creates series with heat rules
function createSeries(heatfield) {

  // Create point series
  var pointSeries = chart.series.push(
    am5map.MapPointSeries.new(root, {
      valueField: heatfield,
      calculateAggregates: true
    })
  );

  // Add store bullet
  var circleTemplate = am5.Template.new(root);
  pointSeries.bullets.push(function() {
    var container = am5.Container.new(root, {});

    var circle = container.children.push(am5.Circle.new(root, {
      radius: 10,
      fill: am5.color(0x000000),
      fillOpacity: 0.7,
      cursorOverStyle: "pointer",
      tooltipText: "{name}:\n[bold]{stores} stores[/]"
    }, circleTemplate));

    var label = container.children.push(am5.Label.new(root, {
      text: "{stores}",
      fill: am5.color(0xffffff),
      populateText: true,
      centerX: am5.p50,
      centerY: am5.p50,
      textAlign: "center"
    }));

    // Set up drill-down
    circle.events.on("click", function(ev) {

      // Determine what we've clicked on
      var data = ev.target.dataItem.dataContext;

      // No id? Individual store - nothing to drill down to further
      if (!data.target) {
        return;
      }

      // Create actual series if it hasn't been yet created
      if (!regionalSeries[data.target].series) {
        regionalSeries[data.target].series = createSeries("count");
        regionalSeries[data.target].series.data.setAll(data.markerData);
      }

      // Hide current series
      if (currentSeries) {
        currentSeries.hide();
      }

      // Control zoom
      if (data.type == "state") {
        var statePolygon = getPolygon("US-" + data.state);
        polygonSeries.zoomToDataItem(statePolygon.dataItem);
      }
      else if (data.type == "city") {
        chart.zoomToGeoPoint({
          latitude: data.geometry.coordinates[1],
          longitude: data.geometry.coordinates[0]
        }, 64, true);
      }
      zoomOut.show();

      // Show new targert series
      currentSeries = regionalSeries[data.target].series;
      currentSeries.show();
    });

    return am5.Bullet.new(root, {
      sprite: container
    });
  });

  // Add heat rule for circles
  pointSeries.set("heatRules", [{
    target: circleTemplate,
    dataField: "value",
    min: 10,
    max: 30,
    key: "radius"
  }])

  // Set up drill-down
  // TODO

  return pointSeries;
}
</script>
